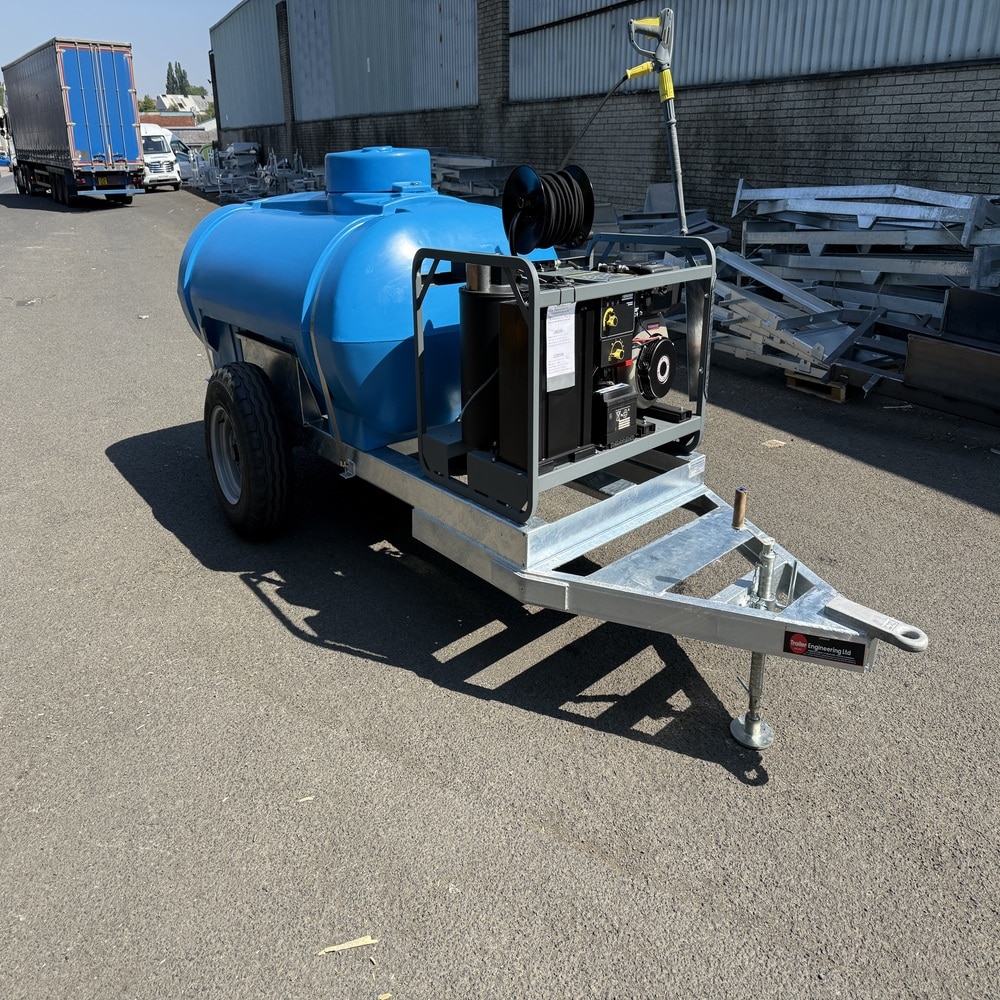

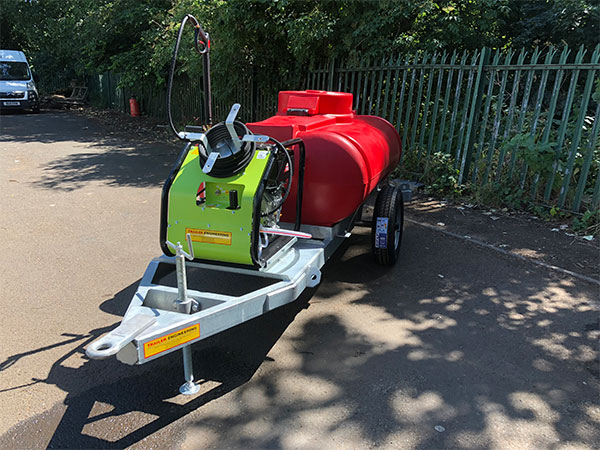

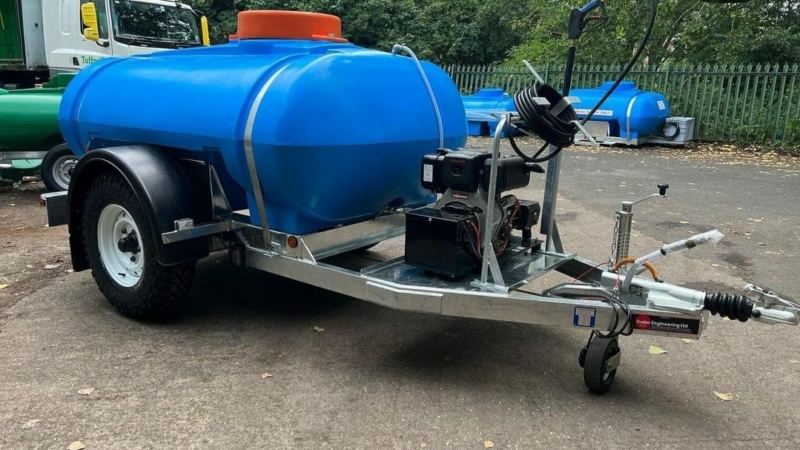

2000 LITRE 3000PSI PRESSURE WASHER SITE BOWSER DIMENSIONS (APPROXIMATE): HEIGHT: 1.600m (63”) LENGTH: 4.040m (159”) WIDTH: 1.854m (73”) TOWING HEIGHT: (level) 420mm UNLADEN WEIGHT: 565kg approx LADEN WEIGHT: 2565kg max CHASSIS: Constructed from 5mm pressed steel section fully welded with a 100 x 50 RSC ‘A’ frame drawbar and a front stand plate. AXLE: Single solid beam axle fitted with 6 stud 205 pcd Hubs. WHEELS AND TYRES: 2 No. 10.75” x 15.3” flotation tyres on 6 stud 205 pcd rims. COUPLING: 2” Forged solid ring eye. TANK: Polyethylene moulded tank, elliptical in section, with internal anti surge baffle, 2” front draw off, 2 rear outlet connections, fitted with a 22” lockable outer hinged man lid cover, inner sealed vented man lid. Tank secured to chassis with 2 stainless steel straps. PUMP: Yanmar electric start L100 10HP engine driving a 200 Bar (3000 psi), 15Lpm piston pump c/w hand lance & 9m of hose stowed on bracket. Fuel consumption approx. 1.5L/Hr, running time approx. 2.9Hrs ANCILLARY EQUIPMENT: T27 Front Screwjack. PUMP: K1 semi rotary hand pump c/w in line ‘Y’ strainer, 15’ of 1″ fuel hose & trigger nozzle. Options available on request: Electric Pump, Petrol Pump, Non Resale Flowmeter. FINISH: Poly tank in yellow, green, blue or red (blue drinking water) chassis galvanised as standard.
